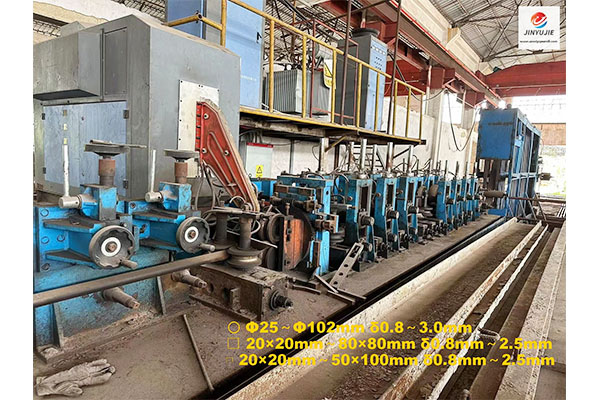

60 Used High Frequency Welded Tube Mill

1.Outer diameter. Φ25～Φ102mm
2.Pipe thickness. δ0.8～3.0mm
3.Square tube size 20×20mm～80×80mm
4.Square tube thickness δ0.8mm～2.5mm
5.Rectangle tube size 20×20mm～50×100mm
6.Rectangle tube thickness δ0.8mm～2.5mm
7.Product Speed 100M/min

Consult

Features
Technical Indicators
Overall Dimension

Processing Capacity
Processing Capacity of 60 used high frequency welded tube mill :
No
Item
Numerical value
1
Outer diameter.
Φ25～Φ102mm
2
Pipe thickness.
δ0.8～3.0mm
3
Square tube size
20×20mm～80×80mm
4
Square tube thickness
δ0.8mm～2.5mm
5
Rectangle tube size
20×20mm～50×100mm
6
Rectangle tube thickness
δ0.8mm～2.5mm
7
Product Speed
100M/min.
REMARK:The pipe making speed cannot meet the maximum speed and maximum thickness at the same time.
Configuration
Configuration of refurbished and 60 used high frequency welded tube mill
Num
Name
Introduction
1
Uncoiler
Manual double cone uncoiler
2
Shear and butt-welding machine
Auto shear and butt-welding machine
3

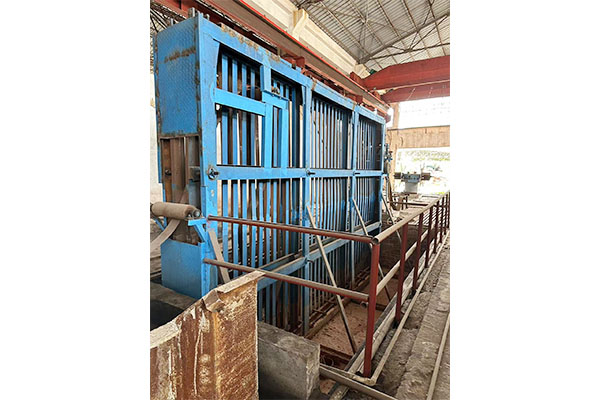

Accumulator
Cage looper/accumulator
4
Forming welding and sizing machine
Forming machine，Guiding and extrude and scraper，Cooling tank，Sizing machine ，Straightening device
5
Main driven motor
160KW
Main driven motor
6
Flying saw
Brand of CONTOR Computer Flying Saw,hot saw
7

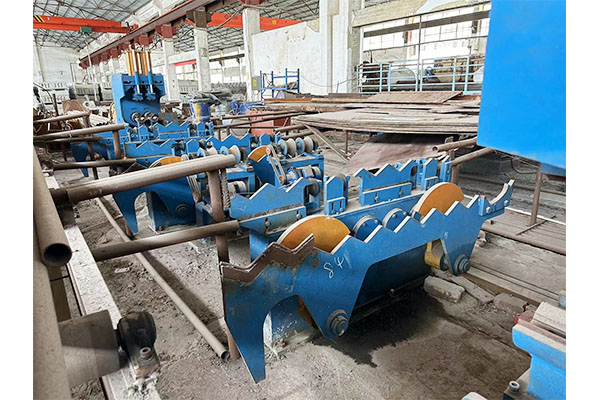

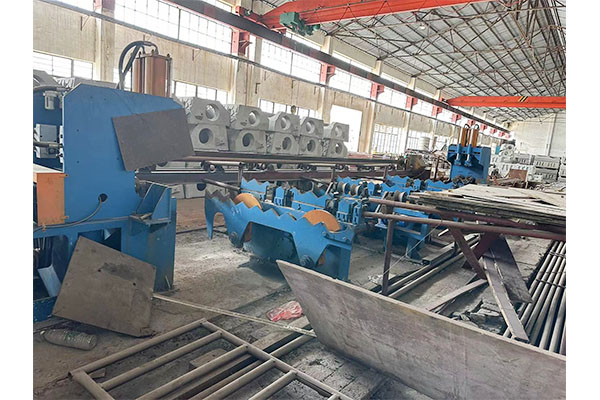

Run-out table
Run out table length 9 meters
8

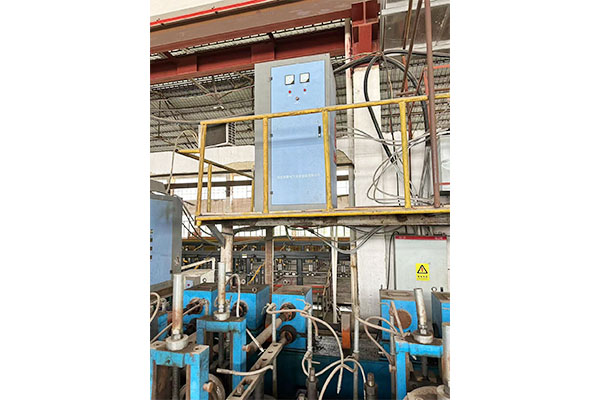

Solid-state High-frequency welder machine
200KW Solid-state High-frequency welder machine
9
Two position flat head machine
Two position flat head machine
10
Roller
Φ48,Φ76
Technological Process
Technological Process of 60 used high frequency welded tube mill :

Working flow:
Raw material (steel coil) → Uncoiling → Material accumulating → Non-power leveling → Mill-forming → High-frequency welding → Removing burrs outside of weld seam → Cooling → Sizing → Roughly straightening → Fixed length cutting → Run-out table
Parameters
Parameter configuration of 60 used high frequency welded tube mill
Mechanical name
Parameter information
Forming welding and sizing machine

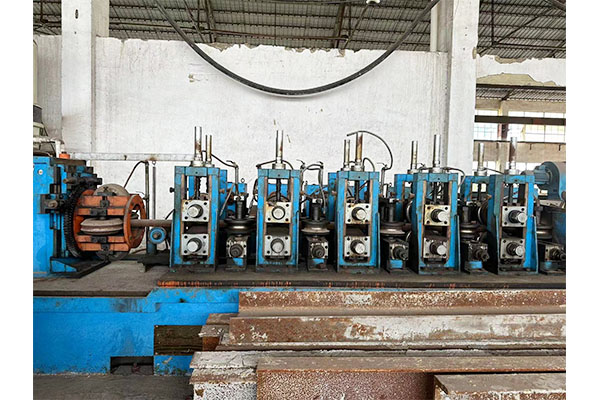

Forming machine
（1）Horizontal-roll stands Quantity
7 stands
（2）Diameter of horizontal shaft
Φ70mm
（3）Vertical-roll stands Quantity
8 stands
（4）Diameter of vertical shaft
Φ40mm
（5）Power transmission method
From universal transmission joint to horizontal roll stands
Sizing machine
（1）Horizontal-roll stands Quantity
5 stands
（2）Diameter of horizontal shaft
Φ 70mm
（3）Vertical-roll stands Quantity
4 stands
（4）Diameter of vertical shaft
Φ 40mm
（5）Power transmission method
From universal transmission joint to horizontal roll stands
Straightening device
Type
Turkish heads,2 sets
Main driven motor
Main driven motor power
160KW
Computer servo flying saw
（1）
Cutting Maxi. Diameter

（2）Cutting Maxi. Wall-thickness

（3）Cutting speed

Product Picture Details
