Φ89mm Refurbished And Used Tube Mill With High Quality Made In Japan, Φ 89 Used Pipe Mill Machine

1.Outer diameter. Φ22.2-80mm
2.Pipe thickness. 0.6-3.0mm
3.Square tube size 25.4x25.4-60x60mm30x15-80x40mm
4.Square tube thickness 0.6-3.0mm
5.Produce speed
Processing Capacity
Processing Capacity of Φ89mm refurbished and used tube mill with high quality made in Japan:

Type

Diameter size

Thickness

Produce Speed

Round tube

Φ22.2-80mm

0.6-3.0mm



Square tube

25.4x25.4-60x60mm

30x15-80x40mm

0.6-3.0mm

REMARK:The pipe making speed cannot meet the maximum speed and maximum thickness at the same time.
Configuration

Configuration of Φ89mm refurbished and used tube mill with high quality made in Japan

Num

Name

Introduction

1

Uncoiler

Double head pneumatic uncoiler

2

Accumulator

Horizontal accumulator

3

Forming welding and sizing machine

Forming machineGuiding and extrude and scraperCooling tankSizing machine Straightening device

4

Main driven motor

37KW*2 Main driven motor

5

Flying saw

Computer servo flying saw

6

Run-out table

Single side kick out

7

Solid-state High-frequency welder machine

150KW American color code Tour high frequency

8

Roller



Technological Process
Technological Process of Φ89mm refurbished and used tube mill with high quality made in Japan:

Working flow:
Raw material (steel coil) → Uncoiling → Material accumulating → Non-power leveling → Mill-forming → High-frequency welding → Removing burrs outside of weld seam → Cooling → Sizing → Roughly straightening → Fixed length cutting → Run-out table
Parameters

Parameter configuration of  Φ89mm refurbished and used tube mill with high quality made in Japan

Mechanical name

Parameter information

Forming welding and sizing machine

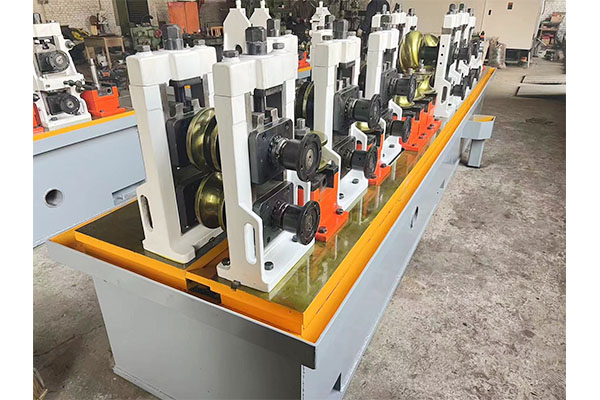

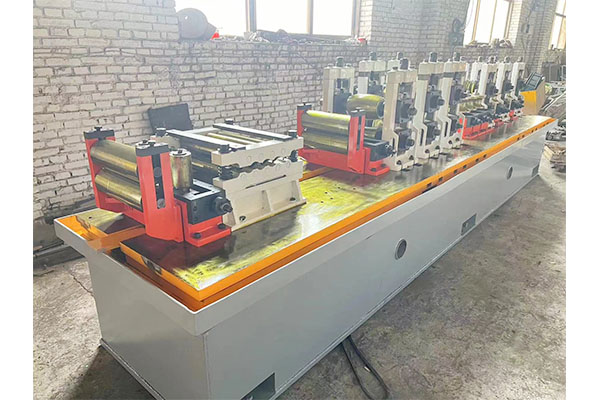

Forming machine

1Horizontal-roll stands Quantity

6 stands

2Diameter of horizontal shaft

Φ58mm

3Vertical-roll stands Quantity

6 stands

4Diameter of vertical shaft

Φ35mm

5Power transmission method

From universal transmission joint to horizontal roll stands

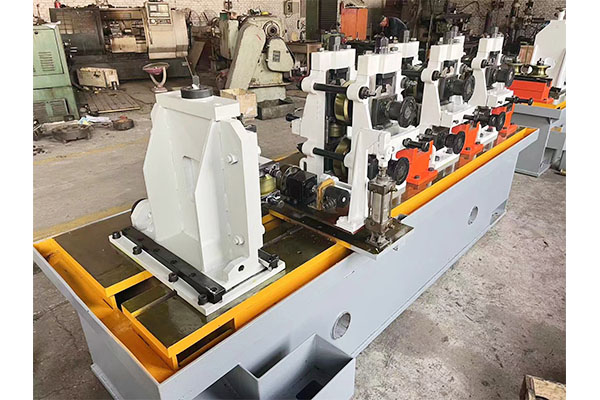

Sizing machine

1Horizontal-roll stands Quantity

6 stands

2Diameter of horizontal shaft

Φ 58mm

3Vertical-roll stands Quantity

6 stands

4Diameter of vertical shaft

Φ 35mm

5Power transmission method

From universal transmission joint to horizontal roll stands

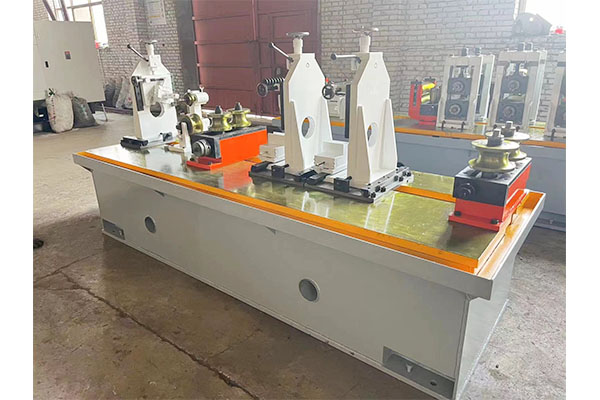

Straightening device

Type

Turk’s head type 2 set

Main driven motor

Main driven motor power

132KW*2

Computer servo flying saw

1

Cutting Maxi. Diameter

Φ127mm

2Cutting Maxi. Wall-thickness



4mm

3Cutting speed

(Max):90M/min


×
