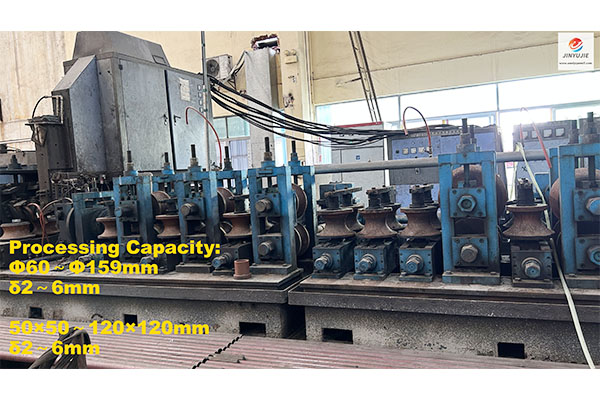

No | Item | Numerical value |
1 | Outer diameter. | Φ60-Φ159mm |
2 | Pipe thickness. | 2.0-6.0mm |
3 | Square tube size | 50×50～120×120mm |
4 | Square tube thickness | 2.0-5.0 |
5 | Produce speed | 60m/min |
Configuration of Φ 76 enlarged to 127 used ERW pipe machine | ||
Num | Name | Introduction |
1 | Uncoiler | Single cone mechanical clamping |
2 | Feeder | |

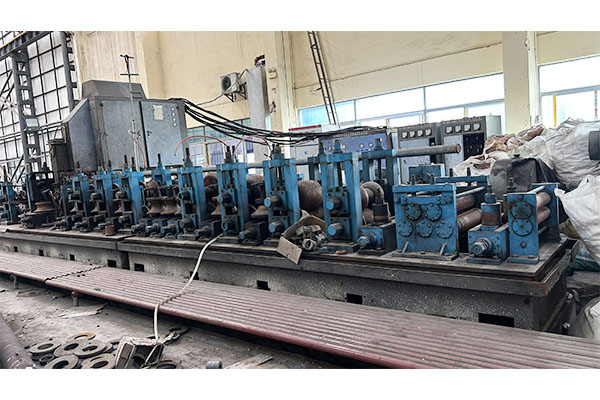

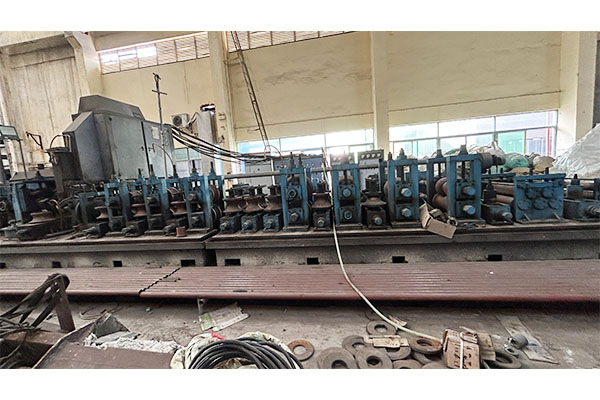

3 | Forming welding and sizing machine | Forming machine,Sizing machine |
4 | Solid-state High-frequency welder | Including rectifitor cabinet, inverter cabinet, operation console, water exchanger, water bucket and cooling tower, and speed adjustor |
5 | Computer servo flying saw | Including flying saw bed, transmission device, and operation console |
6 | Run-out table | |
7 | Packaging rack | |
8 | Roller | Φ140,159 |
9 | Gear grinding machine | |
10 | Spare parts | |
Parameter configuration of Φ 140- 165 mm FuRuiWo refurbished high frequency welding pipe making machie | |||
Mechanical name | Parameter information | ||
Uncoiler | Single cone mechanical clamping | I.D. of steel coil | |
Width of strips | | ||
Thickness of strip steel | | ||
Maxi. Load wight | | ||
Shear and butt-welder | Hydraulic shear | Shearing steel strip thickness | |
Shearing steel strip width | | ||

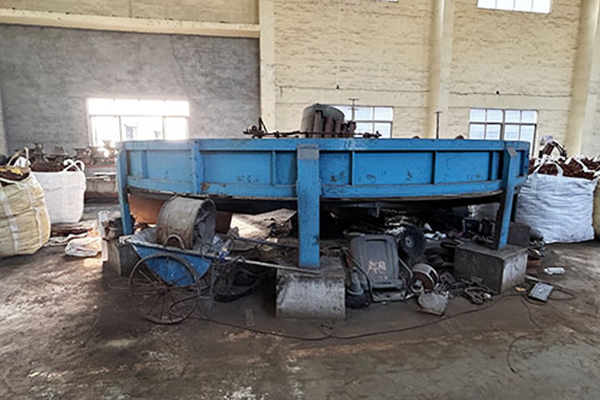

Accumulation | Hydtaulic accumulator | Coil width | |
Coil thickness | | ||
Pinch motor | | ||
Accumulator volume | | ||

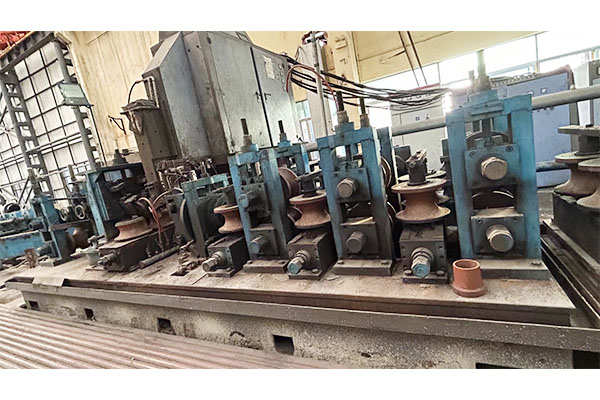

Forming welding and sizing machine | Forming machine | （1）Horizontal-roll stands quantity | 7 |
（2）Diameter of horizontal shaft | Φ110mm | ||
（3）Vertical-roll stands quantity | 8 | ||
（4）Diameter of vertical shaft | Φ70mm | ||
（5）Power transmission method | | ||
Sizing machine | （1）Horizontal-roll stands quantity | 5 | |
（2）Diameter of horizontal shaft | Φ110mm | ||
（3）Vertical-roll stands quantity | 5 | ||
（4）Diameter of vertical shaft | Φ70mm | ||
（5）Power transmission method | From universal transm ission joint to horizontal roll stands | ||
Cooling tank | Sink and shower installed in machine bed | ||
Straightening device | （1）Type | Turk's head type, (4 rolls single side ) Two sets | |
（2）Straightening stands type | Turk's head type ,and 360° rotary | ||
（3）Diameter of straightening shaft | | ||
Main driven motor | Main driven motor power | Z4-250-41,1000-2000rpm，160kw 2台 | |
Reducer model | Quantity | 1 sets | |
Solid-state High-frequency welder | （1）Power | 400KW | |
（2）Diameter range of steel pipe | | ||
（5）Steel pipe wall thickness range | | ||
Computer servo flying saw | （1）Cutting length and tolerance | | |
（2）Blade size | | ||
（4）Cutting speed | | ||
Run-out table | Length | 10m | |
Roller | Specifications | Φ140,159 | |
