Configuration
Configuration of 32 Uses High Frequency Welded Tube Mill | ||
Num | Name | Introduction |
1 | Uncoiler | Pneumatic double head uncoiler |
2 | Shear and butt-welding machine |
|
3 | Accumulator | Cage looper/accumulator |
4 | Forming welding and sizing machine | Forming machine，Guiding and extrude and scraper，Cooling tank，Sizing machine ，Straightening device |
5 | Main driven motor | Dual motor driver Main driven motor |
6 | Flying saw | Cold saw |
7 | Run-out table |
|

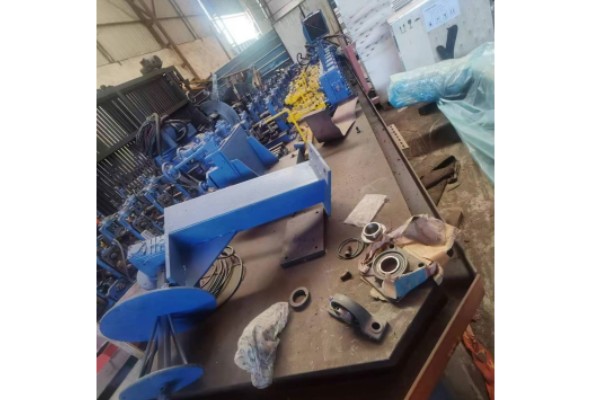

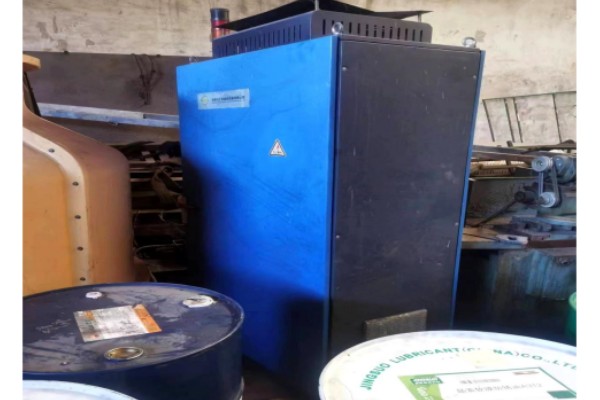

8 | Solid-state High-frequency welder machine | 100-150KW(two options) Solid-state High-frequency welder machine |
9 | Roller | Φ32 |
Technological Process
Technological Process of 32 Used High Frequency Welded Tube Mill:
Working flow:
Raw material (steel coil) → Uncoiling → Material accumulating → Non-power leveling → Mill-forming → High-frequency welding → Removing burrs outside of weld seam → Cooling → Sizing → Roughly straightening → Fixed length cutting → Run-out table
Parameter configuration of 32 Used High Frequency Welded Tube Mill | |||
Mechanical name | Parameter information | ||

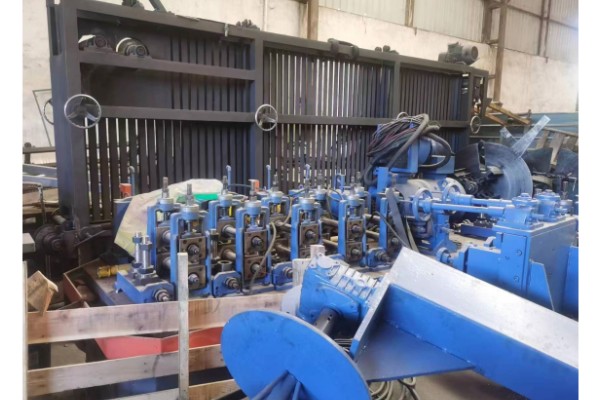

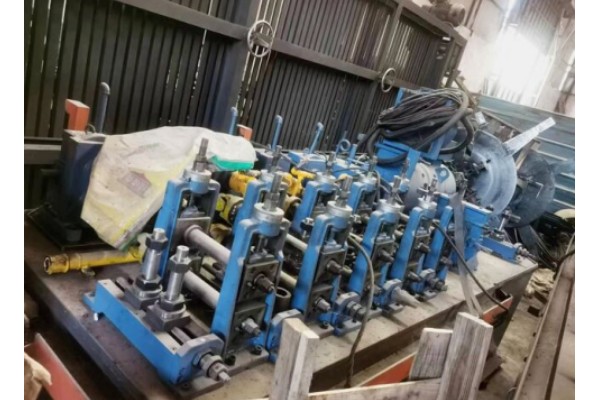

Forming welding and sizing machine | Forming machine | （1）Horizontal-roll stands Quantity | 7 stands |
（2）Diameter of horizontal shaft | Φ70mm | ||
（3）Vertical-roll stands Quantity | 8 stands | ||
（4）Diameter of vertical shaft | Φ40mm | ||
（5）Power transmission method | From universal transmission joint to horizontal roll stands | ||
Sizing machine | （1）Horizontal-roll stands Quantity | 5 stands | |
（2）Diameter of horizontal shaft | Φ 70mm | ||
（3）Vertical-roll stands Quantity | 4 stands | ||
（4）Diameter of vertical shaft | Φ 40mm | ||
（5）Power transmission method | From universal transmission joint to horizontal roll stands | ||
Straightening device | Type | Turkish heads,2 sets | |
Main driven motor | Main driven motor power | 160KW | |
Computer servo flying saw | （1） Cutting Maxi. Diameter | | |
（2）Cutting Maxi. Wall-thickness | | ||
（3）Cutting speed | | ||
